Founded in 1982, Lighthouse Worldwide Solutions is the world’s leading supplier of real time contamination monitoring systems and airborne particle counters. The company has leveraged its superior software design, data integration ability and worldwide support offices to provide its customers with leading edge contamination monitoring solutions.The Lighthouse Monitoring System and Lighthouse line of airborne particle counters have become the standard for many companies, such as Seagate, Western Digital, TSMC, Samsung, Hewlett Packard, Motorola, Hitachi, Maxtor, Lockheed Martin, Microchip, Medtronic, Fujitsu and many more.
Link：www.golighthouse.com |
|
|
|
- Product Features
- Technical Parameters
- Download

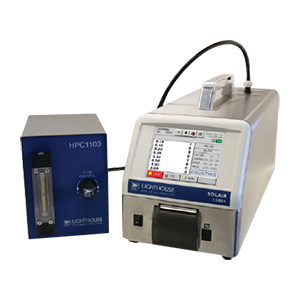

True 0.10μm Particle Detection at 1 CFM
8 Particle Size Channels from 0.10 to 5.0μm
May be Used with Any Inert Gas Including Helium
Meets JIS B 9921 Standard
Intuitive User Control |
Size Range：0.10 – 5.0 μm
Channel Sizes：Standard: 0.10, 0.15, 0.2, 0.25, 0.3, 0.5, 1.0, 5.0μm
Flow Rate：1.0 CFM (28.3 LPM)
Counting Efficiency:50% @ 0.1μm; 100% for particles > 0.15μm (per JIS B 9921)
Light Source:：Enhanced Active Cavity 633nm HeNe Laser |
|
|
|
|
|
